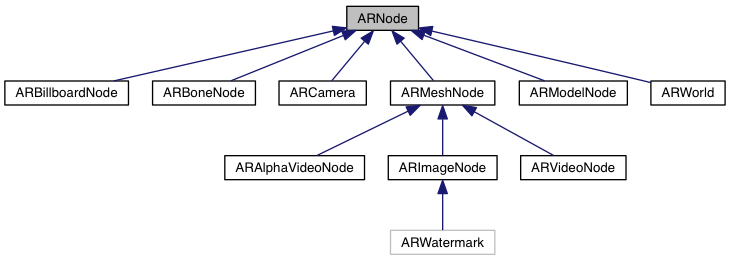

Inheritance diagram for ARNode:

Public Member Functions
	ARNode ()

	ARNode (String name)

void	remove ()

void	removeAllChildren ()

void	addChild (ARNode child)

ARNode	getParent ()

void	setParent (ARNode parent)

List< ARNode >	getChildren ()

ARNode	getWorld ()

Vector3f	getPosition ()

void	setPosition (Vector3f position)

void	setPosition (float x, float y, float z)

void	translateBy (float x, float y, float z)

void	scaleBy (float x, float y, float z)

Vector3f	getScale ()

void	setScale (Vector3f scale)

void	setScale (float x, float y, float z)

void	scaleByUniform (float scale)

Quaternion	getOrientation ()

void	setOrientation (Quaternion orientation)

void	setOrientation (float x, float y, float z, float w)

void	rotateByQuaternion (Quaternion quaternion)

void	rotateByDegrees (float angle, float x, float y, float z)

Matrix4f	getFullTransform ()

Matrix4f	getLocalTransform ()

Matrix4f	getWorldTransform ()

void	render ()

boolean	getVisible ()

void	setVisible (boolean visible)

Quaternion	getWorldOrientation ()

Vector3f	getWorldScale ()

Vector3f	getWorldPosition ()

Vector3f	getFullPosition ()

String	getName ()

void	setName (String name)

void	preRender ()

void	postRender ()

ARNode	findChildByName (String name)

void	addChildren (List< ARNode > children)

void	translateByVector (Vector3f translation)

void	scaleByVector (Vector3f scale)

void	rotateByRadians (float angle, float x, float y, float z)

Detailed Description

An ARNode represents the base object of the scene-graph. It is responsible for the spatial layout of content, and is the node type from which all other nodes derive.

Constructor & Destructor Documentation

ARNode ( )

inline

Initialises an empty ARNode.

ARNode ( String name )

inline

Creates a new ARNode and assigns it the given name.

Example of use:

ARNode node = new ARNode("Example Node");

Parameters

name	The name to give this node.

Member Function Documentation

void addChild ( ARNode child )

inline

Add a node as a child of this node. Any transformations applied to a node are inherited by its children.

Parameters

child The node to be added.

void addChildren ( List< ARNode > children )

inline

Adds a list of nodes as children of this node.

Parameters

children The list of nodes to be added as children.

ARNode findChildByName ( String name )

inline

Find a child of this node with the given name. If there are multiple child nodes with the same name, any nodes after the first cannot be found, as this method will always return the first match. In order to be able to find all nodes, they must all have unique names.

Parameters

name	The name of the node to search for.

Returns: The first ARNode in the list of children with the given name, or null if no such node is found.

List<ARNode> getChildren ( )

inline

Returns a list containing all direct child nodes of this node. This only returns nodes added to this node as children. Any nodes added to those nodes will not be listed here.

Returns: A list containing all direct child nodes of this node.

Vector3f getFullPosition ( )

inline

Gets the full position of the node in eye space.

Returns: A Vector3f representing this node's full position.

Matrix4f getFullTransform ( )

inline

Gets the full transformation of this node in eye space.

Returns: A 4x4 matrix representing this node's full transform.

Matrix4f getLocalTransform ( )

inline

Gets the nodes transformation from its parent node.

Returns: A 4x4 matrix representing this node's local transform.

String getName ( )

inline

Gets the name of this node.

Returns: The node's name.

Quaternion getOrientation ( )

inline

Returns the nodes local orientation as a quaternion;

Returns: This node's orientation relative to its parent.

ARNode getParent ( )

inline

Returns this node's parent node. If its parent is a root node, this returns null.

Returns: This node's parent node.

Vector3f getPosition ( )

inline

Returns the position of this node relative to its parent in a vector.

Returns: This node's position relative to its parent.

Vector3f getScale ( )

inline

Gets the scale of this node, relative to its parent.

Returns: This node's scale relative to its parent.

boolean getVisible ( )

inline

Gets whether or not this node and all of its child nodes should be drawn. If false, this node and its children will not render, even if the child's visibility is set to true.

Returns: This node's visibility. If visible is set to NO then no children will be rendered.

ARNode getWorld ( )

inline

Returns the world node this node descends from.

Returns: The world node this node descends from.

Quaternion getWorldOrientation ( )

inline

Gets the orientation of this node in the space of the nearest AR world this node descends from.

Returns: A Quaternion representing this node's world orientation.

Vector3f getWorldPosition ( )

inline

Gets the position of this node in the space of the nearest ARWorld this node descends from.

Returns: A Vector3f representing this node's world position.

Vector3f getWorldScale ( )

inline

Gets the scale of this node in the space of the nearest ARWorld this node descends from.

Returns: A Vector3f representing this node's world scale.

Matrix4f getWorldTransform ( )

inline

Gets the nodes transformation from the nodes nearest world.

Returns: A 4x4 matrix representing this node's world transform.

void postRender ( )

inline

ARRendererListener interface method. Called after each frame is drawn.

void preRender ( )

inline

ARRendererListener interface method. Called before each frame is drawn.

void remove ( )

inline

Remove this node from its parent node.

void removeAllChildren ( )

inline

Remove all children from this node.

void render ( )

inline

Draws ARNode.

void rotateByDegrees	(	float	angle,
		float	x,
		float	y,
		float	z
	)

inline

Rotate this node by the given number of degrees around the noted axes.

Example of use:

node.rotateByDegrees(90, 1, 0, 1);

Parameters

angle	The angle, in degrees, to rotate by.
x	Whether or not to rotate about this node's X axis. 0 for no, 1 for yes.
y	Whether or not to rotate about this node's X axis. 0 for no, 1 for yes.
z	Whether or not to rotate about this node's X axis. 0 for no, 1 for yes.

void rotateByQuaternion ( Quaternion quaternion )

inline

Rotate this node by multiplying its orientation by a quaternion.

Parameters

quaternion The quaternion to rotate this node with.

void rotateByRadians	(	float	angle,
		float	x,
		float	y,
		float	z
	)

inline

Rotates ARNode using a 4 floats representing a quaternion.

Parameters

angle	Angle of rotation in radians.
x	Rotation around the x axis.
y	Rotation around the y axis.
z	Rotation around the z axis.

void scaleBy	(	float	x,
		float	y,
		float	z
	)

inline

Scale this node separately along each axis. Scale can be non-uniform.

Parameters

x	The amount to scale in the X-axis.
y	The amount to scale in the Y-axis.
z	The amount to scale in the Z-axis.

void scaleByUniform ( float scale )

inline

Scale this node uniformly across each axis. This does not set the scale, but rather adds to the existing scale by the given amount. For example, if you scale a node by 2, then by 4, its overall scale will be 8 times bigger. Scaling occurs in the node's local space.

Example of use:

node.scaleByUniform(2);

Parameters

scale The factor to scale by.

void scaleByVector ( Vector3f scale )

inline

Scales ARNode using a Vector3f.

Parameters

scale as a Vector3f

void setName ( String name )

inline

Sets the name of this node. The name should be unique so that the tracker can find it when using findChildByName.

Parameters

name	The name to assign to this node.

void setOrientation ( Quaternion orientation )

inline

Sets node's orientation relative to its parent using a quaternion.

Parameters

orientation

void setOrientation	(	float	x,
		float	y,
		float	z,
		float	w
	)

inline

Sets the node's orientation relative to its parent using 4 floats. This directly sets the quaternion representation of the node's orientation. This method is not recommended unless you have a thorough understanding of quaternions.

Parameters

x	The X component of the orientation.
y	The Y component of the orientation.
z	The Z component of the orientation.
w	The W component of the orientation.

void setParent ( ARNode parent )

inline

Sets this node's parent node.

Parameters

parent The node to assign as this node's parent.

void setPosition ( Vector3f position )

inline

Sets the node's position relative to its parent using a vector.

Parameters

position The position to give this node.

void setPosition	(	float	x,
		float	y,
		float	z
	)

inline

Set nodes position relative to their parent using three floats.

Parameters

x	The X component of the position.
y	The Y component of the position.
z	The Z component of the position.

void setScale ( Vector3f scale )

inline

Sets the scale of the node, relative to its parent, using the given vector.

Parameters

scale The scale to give this node, represented as a vector.

void setScale	(	float	x,
		float	y,
		float	z
	)

inline

Sets the scale of a node using the provided floats.

Parameters

x	The scale to give this node in its local X-axis.
y	The scale to give this node in its local Y-axis.
z	The scale to give this node in its local Z-axis.

void translateBy	(	float	x,
		float	y,
		float	z
	)

inline

Translates the position of this node in its own local space by the given number of units in each axis. This simply adds the given 3 values to each corresponding component of the node's position. It does not set the position of the node directly.

Parameters

x	The number of units to translate along the X-axis.
y	The number of units to translate along the Y-axis.
z	The number of units to translate along the Z-axis.

void translateByVector ( Vector3f translation )

inline

Translates ARNode using a Vector3f.

Parameters

translation

The documentation for this class was generated from the following file:

ARNode.java
