ARAnimatedTexture Class Reference

#import <ARAnimatedTexture.h>

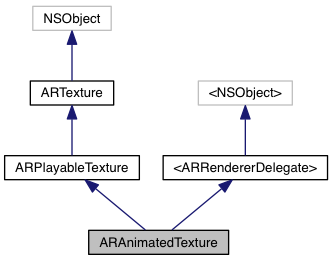

Inheritance diagram for ARAnimatedTexture:

Collaboration diagram for ARAnimatedTexture:

Instance Methods
(void)	- addFrameFromImage:
Instance Methods inherited from ARPlayableTexture
(void)	- reset
(void)	- play
(void)	- pause
(typedef)	- NS_ENUM
Instance Methods inherited from ARTexture
(instancetype)	- initWithUIImage:
(instancetype)	- initWithEmpty
(instancetype)	- initWithExistingTextureID:
(void)	- generateTexture
(void)	- uploadTexture
(void)	- loadTextureFromUIImage:reverseLines:
(void)	- uploadBGRATexture:width:height:
(void)	- uploadBGRATextureSub:width:height:
(BOOL)	- preRender
(void)	- postRender
Instance Methods inherited from <ARRendererDelegate>
(void)	- rendererPreRender
(void)	- rendererPostRender
(void)	- rendererDidPause
(void)	- rendererDidResume

Properties
NSUInteger	numberOfFrames
Properties inherited from ARPlayableTexture
float	frameRate
ARPlayableTextureState	playState
NSTimeInterval	pauseTolerance
NSTimeInterval	resetThreshold
BOOL	lastFramePersist
id< ARPlayableTextureDelegate >	delegate
Properties inherited from ARTexture
unsigned	textureID
unsigned long	width
unsigned long	height
BOOL	isPowerOfTwo
ARTextureFilter	minificationFilter
ARTextureFilter	magnificationFilter

Additional Inherited Members
Protected Attributes inherited from ARTexture
NSData *	_rawImage

Detailed Description

A texture consisting of a series of frames. Each frame added to this texture is played in sequence when the texture is rendered on a material until it the sequence reaches the end, at which point the default behaviour is to loop back to the first frame and start again. This behaviour can be disabled if need be, so that the last frame in the sequence is continually rendered once the sequence has finished. This is useful for simple 2D animations, akin to a gif or sprite sheet, as transparency is maintained when using .png images.

Method Documentation

- (void) addFrameFromImage:

(UIImage *)


Adds a new frame to the end of this texture's sequence.

Example of use:

ARAnimatedTexture *animatedTexture = [[ARAnimatedTexture alloc] init];
[animatedTexture addFrameFromImage:image];

Parameters


The UIImage containing the texture. It should have the same resolution as any previously added images. If lastFramePersist (Inherited from ARPlayableTexture) is set to YES, this will become the frame that gets continually rendered once the sequence has finished.

Property Documentation

- (NSUInteger) numberOfFrames

readnonatomicassign

The total number of frames in this texture's sequence.

---

The documentation for this class was generated from the following file:

• ARAnimatedTexture.h
