ARCameraStream Class Reference

#import <ARCameraStream.h>

Inheritance diagram for ARCameraStream:

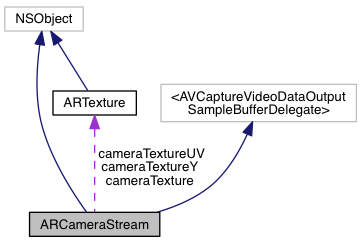

Collaboration diagram for ARCameraStream:

Instance Methods
(ARColour *)	- averageColourFromData:withChannels:downsamplingWidth:height:
(void)	- initialise
(void)	- deinitialise
(void)	- start
(void)	- stop
(void)	- addDelegate:
(void)	- removeDelegate:
(void)	- removeDelegates

Class Methods
(ARCameraStream *)	+ getInstance

Properties
float	width
float	height
float	padding
ARTexture *	cameraTexture
NSArray *	delegates
ARTexture *	cameraTextureY
ARTexture *	cameraTextureUV

Detailed Description

A manager class for handling the camera stream.

Method Documentation

- (void) addDelegate:

(id< ARCameraStreamEvent >)

delegate

Parameters

delegate

The delegate to add. Add a delegate for camera update event notifications.

- (ARColour *) averageColourFromData:		(NSData *)	data
withChannels:		(int)	channels
downsamplingWidth:		(int)	width
height:		(int)	height

Returns the average colour of an image expressed as a byte array. The image will be downsized before computation of the average. Smaller images will compute faster at the expense of accuracy. It is recommended to reduce image size as much as possible.

Example of use:

UIImage *image = [[UIImage alloc] initWithContentsOfFile:@"example.jpg"];
NSData *data = UIImagePNGRepresentation(image);
ARColour *averageColour = [[ARCameraStream getInstance] averageColourFromData:data withChannels:3 downSamplingWidth:64 height:64];

By using similar code with the didReceiveNewFrame event, it is possible to get the average colour of each frame as it becomes available.

Parameters

data	NSData object containing the image data.
channels	The number of channels contained within the image data. For example, RGB data would contain 3 channels.
width	The width, in pixels, to which the image will be scaled before computing the average.
height	The height, in pixels, to which the image will be scaled before computing the average.

Returns

Average colour of the image as an ARColour object.

- (void) deinitialise

Deinitialise the camera. This is usually handled automatically.

Example of use:

[[ARCameraStream getInstance] deinitialise];

+ (ARCameraStream *) getInstance

Gets the instance of the camera stream singleton.

Example of use:

ARCameraStream *cameraStream = [ARCameraStream getInstance];

Returns

The singleton instance.

- (void) initialise

Initialise the camera. This is usually handled automatically.

Example of use:

[[ARCameraStream getInstance] initialise];

- (void) removeDelegate:

(id< ARCameraStreamEvent >)

delegate

Parameters

delegate

The delegate to remove. Remove a delegate from camera update event notifications.

- (void) removeDelegates

Removes all ARCameraStreamEvent delegates currently associated with this singleton.

- (void) start

Start the camera stream. This is usually handled automatically.

Example of use:

[[ARCameraStream getInstance] start];

- (void) stop

Stop the camera stream. This is usually handled automatically.

Example of use:

[[ARCameraStream getInstance] stop];

Property Documentation

- (ARTexture*) cameraTexture

readwritenonatomicassign

The camera texture.

- (ARTexture*) cameraTextureUV

readwritenonatomicassign

Camera chroma texture.

- (ARTexture*) cameraTextureY

readwritenonatomicassign

Camera luma texture.

- (NSArray*) delegates

readwritenonatomicassign

Array containing all ARCameraStreamEvent delegates that have been added to this singleton.

- (float) height

readwritenonatomicassign

The height of the camera image, in pixels.

- (float) padding

readwritenonatomicassign

The padding of the camera image in pixels.

- (float) width

readwritenonatomicassign

The width of the camera image, in pixels.

---

The documentation for this class was generated from the following file:

• ARCameraStream.h
