ARExtractedCameraTexture Class Reference

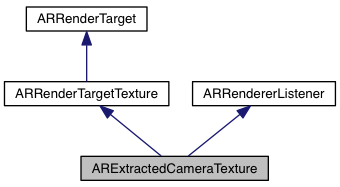

Inheritance diagram for ARExtractedCameraTexture:

Collaboration diagram for ARExtractedCameraTexture:

Public Member Functions
float	getmSrcHeight ()
float	getmSrcWidth ()
void	setSrcWidth (float srcWidth)
void	setSrcHeight (float srcHeight)
void	setSrcNode (ARNode node)
ARNode	getSrcNode ()
	ARExtractedCameraTexture (int width, int height)
void	preRender ()
void	postRender ()
void	rendererDidPause ()
void	rendererDidResume ()
Public Member Functions inherited from ARRenderTargetTexture
	ARRenderTargetTexture (int width, int height)
ARTexture2D	getTexture ()
void	bind ()
void	create ()
void	draw ()
int	getWidth ()
int	getHeight ()
Public Member Functions inherited from ARRenderTarget
	ARRenderTarget ()
void	setPriority (int priority)
int	getPriority ()
void	setShouldClear (boolean shouldClear)
boolean	getShouldClear ()
void	setShouldClearDepth (boolean shouldClearDepth)
boolean	getShouldClearDepth ()
void	clear ()
void	setCamera (ARCamera camera)
ARCamera	getCamera ()
void	create ()
void	bind ()
void	draw ()
List< ARViewPort >	getViewPorts ()
void	addViewPort (ARViewPort viewPort)
Bitmap	screenshot (int width, int height)

Additional Inherited Members
Protected Attributes inherited from ARRenderTarget
int	mFramebufferID

Detailed Description

The ARExtractedCameraTexture is a texture that takes its data directly from the camera stream. This can be used during rendering to deform the camera texture.

Example of use for Marker tracking:

ARImageTrackable imageTrackable = new ARImageTrackable();
imageTrackable.loadFromAsset("example.jpg");
ARExtractedCameraTexture cameraTexture = new ARExtractedCameraTexture(512, 512);

cameraTexture.setSrcNode(new ARNode());
cameraTexture.setSrcWidth(imageTrackable.getWidth());
cameraTexture.setSrcHeight(imageTrackablegetHheight());

imageTrackable.getWorld().addChild(cameraTexture.getSrcNode());

Example of use for Markerless tracking:

ARExtractedCameraTexture cameraTexture = new ARExtractedCameraTexture(512, 512);

cameraTexture.setSrcNode(new ARNode());
cameraTexture.setSrcWidth(100);
cameraTexture.setSrcHeight(100);

Constructor & Destructor Documentation

ARExtractedCameraTexture ( int  width, int  height  )

inline

Initialises the texture with the given dimensions. Overall resolution doesn't have to match the aspect ratio of srcWidth:srcHeight.

Parameters

width	The width of the extracted texture. Maximum width 2048. Recommended width 512 for balance between performance and quality.
height	The height of the extracted texture. Maximum width 2048. Recommended height 512 for balance between performance and quality.

Member Function Documentation

float getmSrcHeight ( )

inline

Returns the source node's height.

Returns

The height of the source node, in pixels.

float getmSrcWidth ( )

inline

Returns the source node's width.

Returns

The width of the source node, in pixels.

ARNode getSrcNode ( )

inline

Gets the source node of the extracted camera texture. This node defines the region of the camera image the texture should be extracted from. Move this node around by adding it to the area of interest (e.g the world of a trackable). Can be re-parented to your own nodes.

Returns

The Source Noce of the extracted camera texture.

void postRender ( )

inline

Method called just after rendering each frame.

Implements ARRendererListener.

void preRender ( )

inline

ARRendererListener interface method. Updates ARCameraBackgroundMaterials model view projection matrix.

Implements ARRendererListener.

void rendererDidPause ( )

inline

Method called when the renderer has been paused. This can be used to shut down other subsystems.

Implements ARRendererListener.

void rendererDidResume ( )

inline

Method called when the renderer resumes after being paused.

Implements ARRendererListener.

void setSrcHeight ( float  srcHeight )

inline

Sets the source node's height.

Parameters

srcHeight

The height to give the source node.

void setSrcNode ( ARNode  node )

inline

Sets source node which defines the region of the camera image the texture should be extracted from.

Parameters

node

void setSrcWidth ( float  srcWidth )

inline

Sets the source node's width.

Parameters

srcWidth

The width to give the source node.

---

The documentation for this class was generated from the following file:

• ARExtractedCameraTexture.java
