KudanAR - iOS
Properties
ARSpotLight Class Reference

#import <ARSpotLight.h>

+ Inheritance diagram for ARSpotLight:

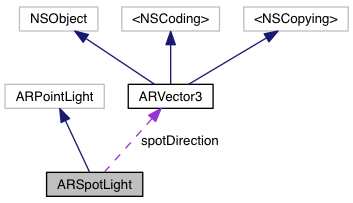

+ Collaboration diagram for ARSpotLight:

Properties

float innerSpotAngle

float outerSpotAngle

ARVector3 * spotDirection


Detailed Description

An ARSpotLight represents a light in the scene that shines from a specific position along a specific direction with a cone-shaped area of effect. It can be translated and rotated just like any other node. It can be seen as a combination of an ARPointLight and an ARDirectionLight, as both the position and orientation of an ARSpotLight will affect the overall level of illumination on each object in the scene.

Property Documentation

- (float) innerSpotAngle
readwritenonatomicassign

The angle between the centre of the light direction vector and the side of the light cone at which the light intensity begins to decay, expressed in radians. Should be no more than M_PI / 2. Should not be greater than the outer spot angle.

- (float) outerSpotAngle
readwritenonatomicassign

The angle between the centre of the light direction vector and the side of the light cone at which the light intensity becomes 0, expressed in radians. Should be no more than M_PI / 2. Should not be less than the inner spot angle.

- (ARVector3*) spotDirection
readwritenonatomicassign

The normalised direction that the spotlight is pointing in.

The documentation for this class was generated from the following file:
