ARWorld Class Reference

#import <ARWorld.h>

Inheritance diagram for ARWorld:

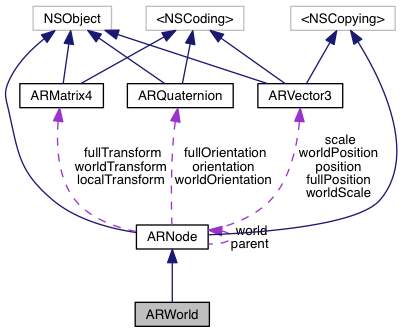

Collaboration diagram for ARWorld:

Additional Inherited Members
Instance Methods inherited from ARNode
(void)	- addChild:
(void)	- addChildren:
(void)	- removeChild:
(void)	- removeAllChildren
(void)	- remove
(ARNode *)	- findChildWithName:
(void)	- markWorldTransformAsDirty
(void)	- translateByX:y:z:
(void)	- translateByX:y:z:transformSpace:
(void)	- translateByVector:
(void)	- translateByVector:transformSpace:
(void)	- scaleByUniform:
(void)	- scaleByX:y:z:
(void)	- scaleByVector:
(void)	- rotateByDegrees:axisX:y:z:
(void)	- rotateByRadians:axisX:y:z:
(void)	- rotateByQuaternion:
(ARVector3 *)	- positionToWorld:
(ARVector3 *)	- positionToEye:
(ARQuaternion *)	- orientationToWorld:
(ARQuaternion *)	- orientationToEye:
(CGPoint)	- viewPortFromNodePosition:
(void)	- render
(void)	- preRender
(void)	- postRender
(void)	- addTouchTarget:withAction:
(void)	- didReceiveTouch
(ARVector3 *)	- nodeFromViewPort:
Class Methods inherited from ARNode
(instancetype)	+ nodeWithName:
Protected Member Functions inherited from ARNode
(typedef)	- NS_ENUM
Properties inherited from ARNode
NSString *	name
ARNode *	parent
NSArray< ARNode * > *	children
NSArray *	descendants
ARVector3 *	position
ARVector3 *	scale
ARQuaternion *	orientation
ARMatrix4 *	localTransform
ARMatrix4 *	worldTransform
ARMatrix4 *	fullTransform
ARQuaternion *	fullOrientation
ARQuaternion *	worldOrientation
ARVector3 *	worldScale
ARVector3 *	worldPosition
ARVector3 *	fullPosition
ARNode *	world
NSUInteger	childCount
BOOL	visible

Detailed Description

A node representing the concept of a world. A world has special properties in that there are helper methods to convert arbitrary node transformations into world space. It also has special meaning for reflection maps as reflections are calculated in world space. This means that the environment map is aligned with the closest descendent ARWorld.

---

The documentation for this class was generated from the following file:

• ARWorld.h
