ARRenderTarget Class Reference

#import <ARRenderTarget.h>

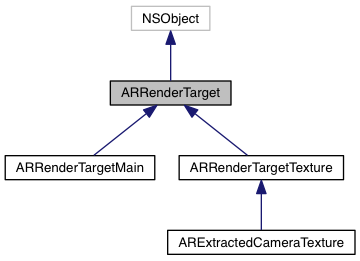

Inheritance diagram for ARRenderTarget:

Collaboration diagram for ARRenderTarget:

Instance Methods
(void)	- addViewPort:
(void)	- addViewPort:zOrder:
(void)	- removeViewPort:
(void)	- clearViewPorts
(instancetype)	- initWithWidth:height:
(ARViewPort *)	- createDefaultViewPort
(void)	- addDelegate:
(UIImage *)	- screenshot
(BOOL)	- checkFBO
(void)	- bindBuffer
(void)	- bindCaptureBuffer
(void)	- draw
(void)	- drawForCapture

Properties
NSArray *	viewPorts
NSUInteger	numberOfViewPorts
float	width
float	height
NSArray *	delegates
NSInteger	priority
BOOL	hasDepth
BOOL	hasStencil
BOOL	manualDraw
NSDictionary *	captureColourToNode
BOOL	touchEventReceived
CGPoint	touchPoint

Detailed Description

A render target represents a target buffer for rendering.

Method Documentation

- (void) addDelegate:

(id< ARRenderTargetDelegate >)

delegate

Add a delegate to receive rendering events for this render target.

Example of use:

ARRenderTarget *renderTarget = [[ARRenderTarget alloc] initWithWidth:100 height:100];
[renderTarget addDelegate:self];

Parameters

delegate

ARRenderTargate delegate.

- (void) addViewPort:

(ARViewPort *)

viewPort

Add a viewport to this render target.

Example of use:

ARViewPort *viewPort = [[ARViewPort alloc] initWithOffsetX:0 y:0 height:100 width:100];
ARRenderTarget *renderTarget = [[ARRenderTarget alloc] initWithWidth:100 height:100];
[renderTarget addViewPort:viewPort];

Parameters

viewPort

The viewport to add.

- (void) addViewPort:		(ARViewPort *)	viewPort
zOrder:		(NSInteger)	zOrder

Add a viewport to this render target and set its z-order.

Example of use:

ARViewPort *viewPort = [[ARViewPort alloc] initWithOffsetX:0 y:0 height:100 width:100];
ARRenderTarget *renderTarget = [[ARRenderTarget alloc] initWithWidth:100 height:100];
[renderTarget addViewPort:viewPort zOrder:-10];

Parameters

viewPort	The viewport to add.
zOrder	The render priority of this viewport. Any value is fine, lower values are rendered first.

- (void) bindBuffer

Binds frame buffer objects for use in OpenGL.

- (void) bindCaptureBuffer

Binds capture frame buffer. Used for touch detection.

- (BOOL) checkFBO

Check frame buffer status.

- (void) clearViewPorts

Remove all viewports from this render target.

Example of use:

[renderTarget clearViewPorts];

- (ARViewPort *) createDefaultViewPort

Creates a default viewport with dimensions matching the resolution of this render target and no offset.

Example of use:

ARRenderTarget *renderTarget = [[ARRenderTarget alloc] initWithWidth:100 height:100];
ARViewPort *viewPort = [renderTarget createDefaultViewPort];

Returns

The new viewport.

- (void) draw

Draws render target to screen.

- (instancetype) initWithWidth:		(float)	width
height:		(float)	height

Initialise an ARRenderTarget using the given width and height.

Example of use:

ARRenderTarget *renderTarget = [[ARRenderTarget alloc] initWithWidth:100 height:100];

Parameters

width	The width, in pixels, of the render target.
height	The height, in pixels, of the render target.

Implemented in ARExtractedCameraTexture, and ARRenderTargetTexture.

- (void) removeViewPort:

(ARViewPort *)

viewPort

Remove a viewport from this render target.

Example of use:

[rederTarget removeViewPort:viewPort];

Parameters

viewPort

The viewport to remove.

- (UIImage *) screenshot

Take a screenshot of this render target. Resolution of the image is the same as the resolution of the render target.

Example of use:

ARRenderTarget *renderTarget = [[ARRenderTarget alloc] initWithWidth:100 height:100];
UIImage screenshot = [renderTarget screenshot];

Returns

The screenshot.

Property Documentation

- (NSArray*) delegates

readnonatomicassign

The list of all added delegates.

- (BOOL) hasDepth

readwritenonatomicassign

Whether this render target has a depth buffer.

- (BOOL) hasStencil

readwritenonatomicassign

Whether this render target has a stencil buffer.

- (float) height

readwritenonatomicassign

The height, in pixels, of this render target.

- (BOOL) manualDraw

readwritenonatomicassign

Whether this render target is drawn automatically each frame, or whether it has to be drawn explicitly. Default NO - drawn automatically.

- (NSUInteger) numberOfViewPorts

readnonatomicassign

The number of viewports contained by this render target.

- (NSInteger) priority

readwritenonatomicassign

The priority of this render target relative to other render targets. Any value is fine. Lower is rendered first.

- (BOOL) touchEventReceived

readwritenonatomicassign

Whether the screen has been touched.

- (CGPoint) touchPoint

readwritenonatomicassign

Coordinates for where the screen was touched.

- (NSArray*) viewPorts

readwritenonatomicassign

The list of ARViewPort objects that this render target contains. These are rendered based on viewport z-order.

- (float) width

readwritenonatomicassign

The width, in pixels, of this render target.

---

The documentation for this class was generated from the following file:

• ARRenderTarget.h
