ARExtractedCameraTexture Class Reference

#import <ARExtractedCameraTexture.h>

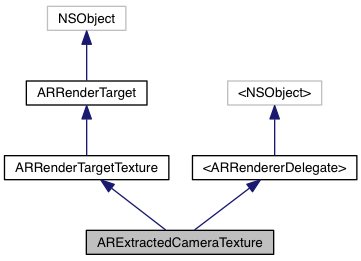

Inheritance diagram for ARExtractedCameraTexture:

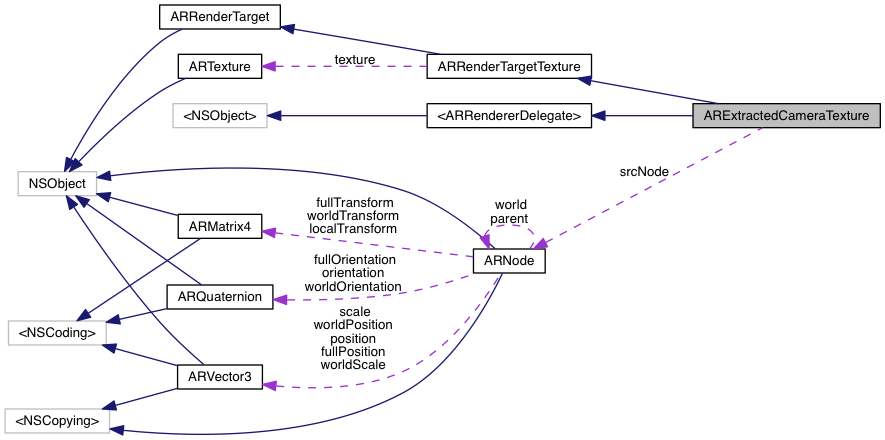

Collaboration diagram for ARExtractedCameraTexture:

Instance Methods
(instancetype)	- initWithWidth:height:
Instance Methods inherited from ARRenderTarget
(void)	- addViewPort:
(void)	- addViewPort:zOrder:
(void)	- removeViewPort:
(void)	- clearViewPorts
(ARViewPort *)	- createDefaultViewPort
(void)	- addDelegate:
(UIImage *)	- screenshot
(BOOL)	- checkFBO
(void)	- bindBuffer
(void)	- bindCaptureBuffer
(void)	- draw
(void)	- drawForCapture
Instance Methods inherited from <ARRendererDelegate>
(void)	- rendererPreRender
(void)	- rendererPostRender
(void)	- rendererDidPause
(void)	- rendererDidResume

Properties
ARNode *	srcNode
float	srcWidth
float	srcHeight
Properties inherited from ARRenderTargetTexture
ARTexture *	texture
Properties inherited from ARRenderTarget
NSArray *	viewPorts
NSUInteger	numberOfViewPorts
float	width
float	height
NSArray *	delegates
NSInteger	priority
BOOL	hasDepth
BOOL	hasStencil
BOOL	manualDraw
NSDictionary *	captureColourToNode
BOOL	touchEventReceived
CGPoint	touchPoint

Detailed Description

The ARExtractedCameraTexture is a texture that takes its data directly from the camera stream. This can be used during rendering to deform the camera texture.

Example of use for Marker tracking:

ARImageTrackable *imageTrackable = [[ARImageTrackable alloc] initWithBundledFile:@"example.jpg"];
ARExtractedCameraTexture *cameraTexture = [[ARExtractedCameraTexture alloc] initWithWidth:512 height:512];

cameraTexture.srcNode = [ARNode nodeWithName:@"camera texture source node"];
cameraTexture.srcWidth = trackable.width;
cameraTexture.srcHeight = trackable.height;

[trackable.world addChild:extracted.srcNode];

Example of use for Markerless tracking:

ARExtractedCameraTexture *cameraTexture = [[ARExtractedCameraTexture alloc] initWithWidth:512 height:512];

cameraTexture.srcNode = [ARNode nodeWithName:@"camera texture source node"];;
cameraTexture.srcWidth = 100;
cameraTexture.srcHeight = 100;

Method Documentation

- (instancetype) initWithWidth:		(float)	width
height:		(float)	height

Initialises the texture with the given dimensions. Overall resolution doesn't have to match the aspect ratio of srcWidth:srcHeight.

Example of use:

ARExtractedCameraTexture *cameraTexture = [[ARExtractedCameraTexture alloc] initWithWidth:512 height:512];

Parameters

width	The width of the extracted texture. Maximum width 2048. Recommended width 512 for balance between performance and quality.
height	The height of the extracted texture. Maximum width 2048. Recommended height 512 for balance between performance and quality.

Implements ARRenderTargetTexture.

Property Documentation

- (float) srcHeight

readwritenonatomicassign

The height in the coordinate space of the source node that determines the Y-axis boundaries of the texture.

- (ARNode*) srcNode

readwritenonatomicassign

The node which defines the region of the camera image the texture should be extracted from. Move this node around by adding to the area of interest (e.g the world of a trackable). Can be reparented to your own nodes.

- (float) srcWidth

readwritenonatomicassign

The width in the coordinate space of the source node that determines the X-axis boundaries of the texture.

---

The documentation for this class was generated from the following file:

• ARExtractedCameraTexture.h
